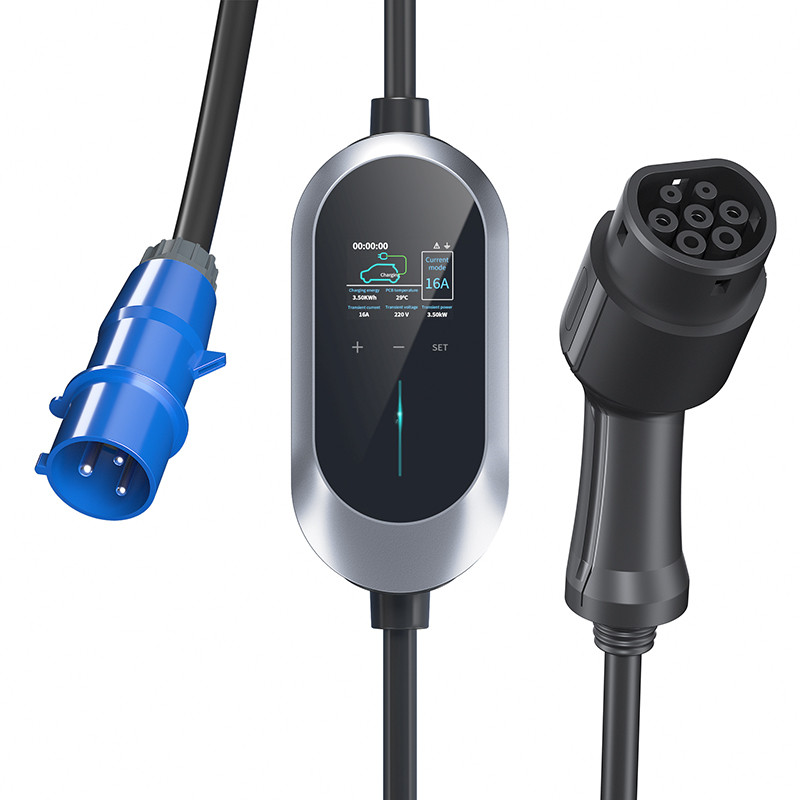

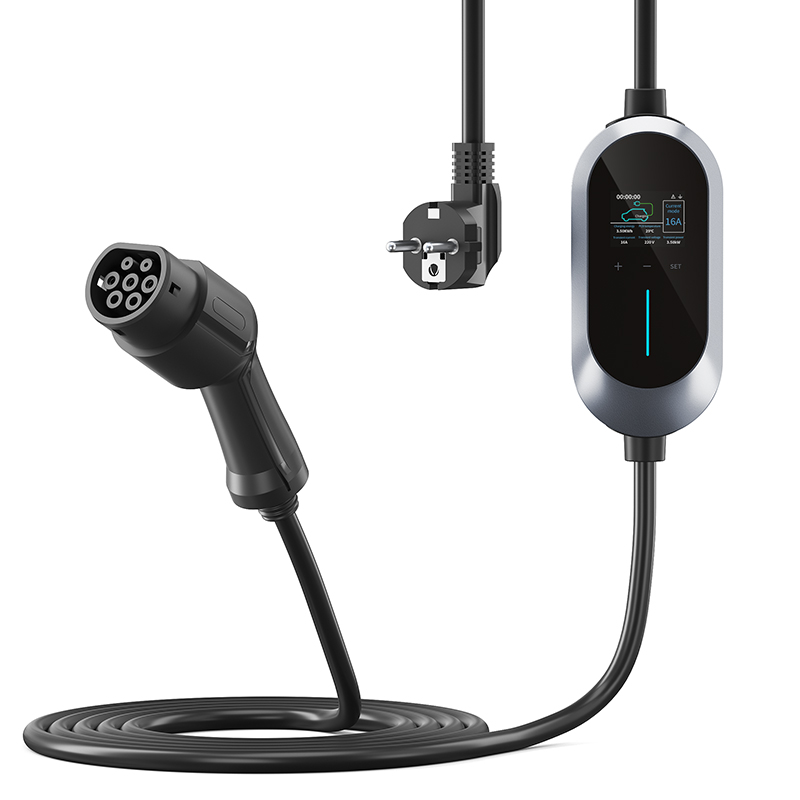

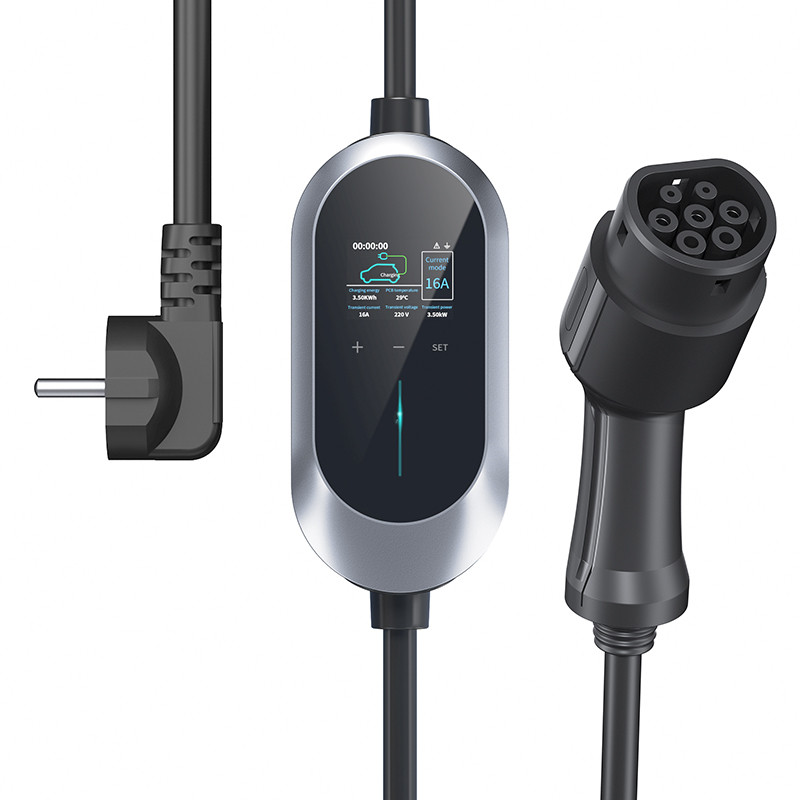

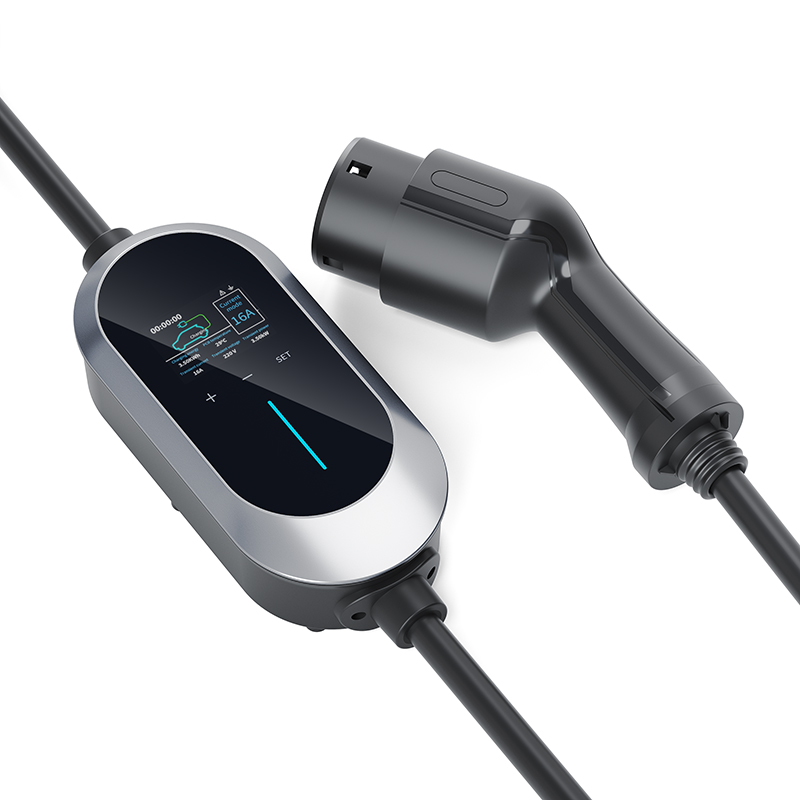

Our EV charger supplies power to any electrical vehicle. The wall-mounted and floor-mounted design as well as its IP65 dust and waterproof housing make the EV chargers suitable for outdoor or indoor spaces. The output of our AC EV charger ranges from 8amps to 32amps. Equipped with an intelligent LCD display screen, the Macure electric vehicle charger provides a clear visual representation of the charging status, and scheduled charging settings. Easily understand the charging process and make adjustments as needed. This smart design keeps you informed about the charging progress, ensuring that your charging always aligns with your plans.
| Model | Q16EU | Q32EU |
| Input /Output Voltage | AC 230V/ Single phase | AC 230V/ Single phase |
| Input / Output Vurrent | 8, 10, 12, 14, 16A adjustable | 8, 12,14,16, 20, 24, 28, 32A Aadjustable |
| Max Output Power | 3.68KW | 7.36KW |
| Frequency | 50/60Hz | |
| Input Plug | Schuko | CEE 3-Pin |
| Output Plug | Type2(Mennekes) | |
| Output Cable | 5M | |
| Withstand Voltage | 3000V | |
| Work Altitude | <2000M | |
| Stand by | <3W | |
| Protection | over voltage protection, over load protection, over-temp protection, under voltage protection, earth leakage protection, lightning protection, short circuit protection | |
| IP level | IP65 | |
| Touch Button | Yes | |
| LCD Screen | Yes | |
| Current Adjustment | Yes | |
| Timing / Appointment | Yes | |
| Certification | CE, RoHS | |
